Ergo Tile Trans Rubi transport system

Descripción

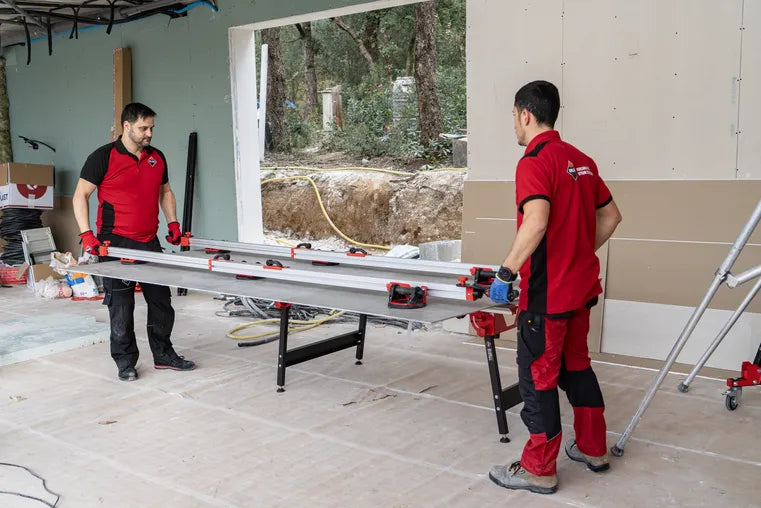

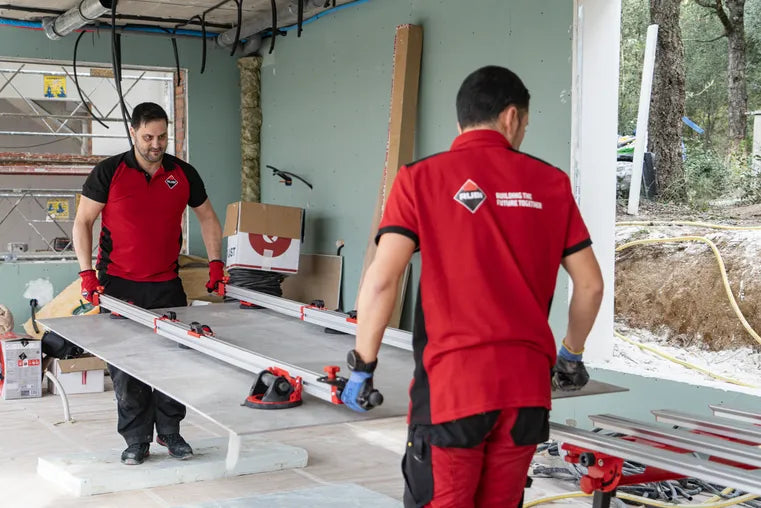

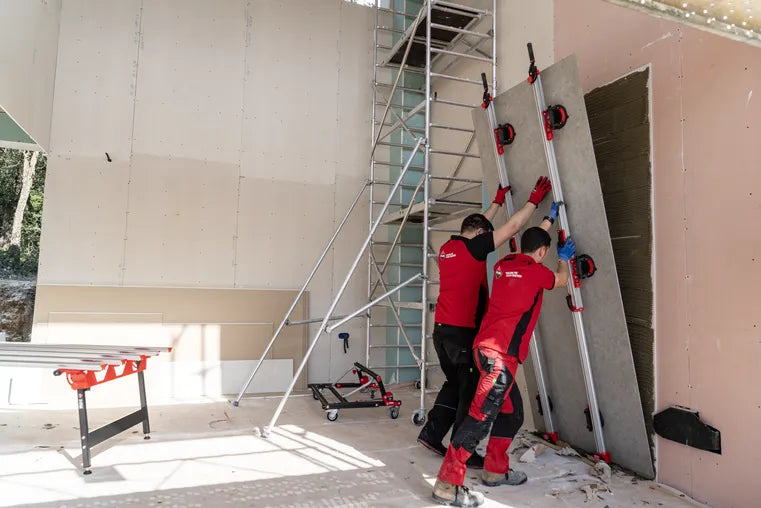

The ERGO TILE TRANS is a system designed for the transport and handling of large-format pieces, especially thin porcelain slabs (SLIM) or any large tile with a maximum weight of 80 kg . It stands out for its lightness and its ability to adapt to different piece sizes.

CHARACTERISTICS

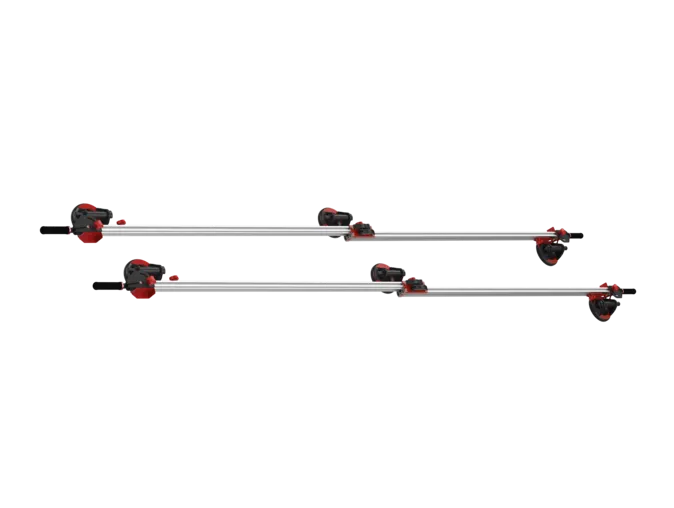

• Extendable Structure: Composed of two retractable aluminum profiles that allow handling tiles up to 320 cm in length.
• Custom Adjustment: The distance between the profiles can be adjusted according to needs, with a recommended separation of 700 mm to ensure maximum stability.

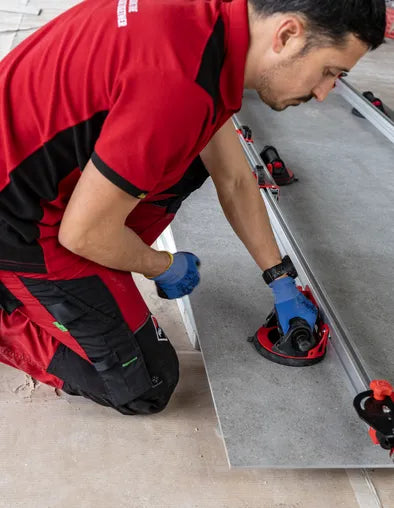

• Clamping System: Equipped with 3 vacuum suction cups of 160 mm on each profile, totaling 6 suction cups for a secure and reliable grip.
• Expandable Capacity: Although its standard load is 80 kg, this can be increased to 120 kg by using the "Crossbar Set Supplement" accessory (Ref. 18819).
• Versatility: It is ideal for handling delicate parts thanks to its design that minimizes sheet flexing.

SPECS
