Descripción

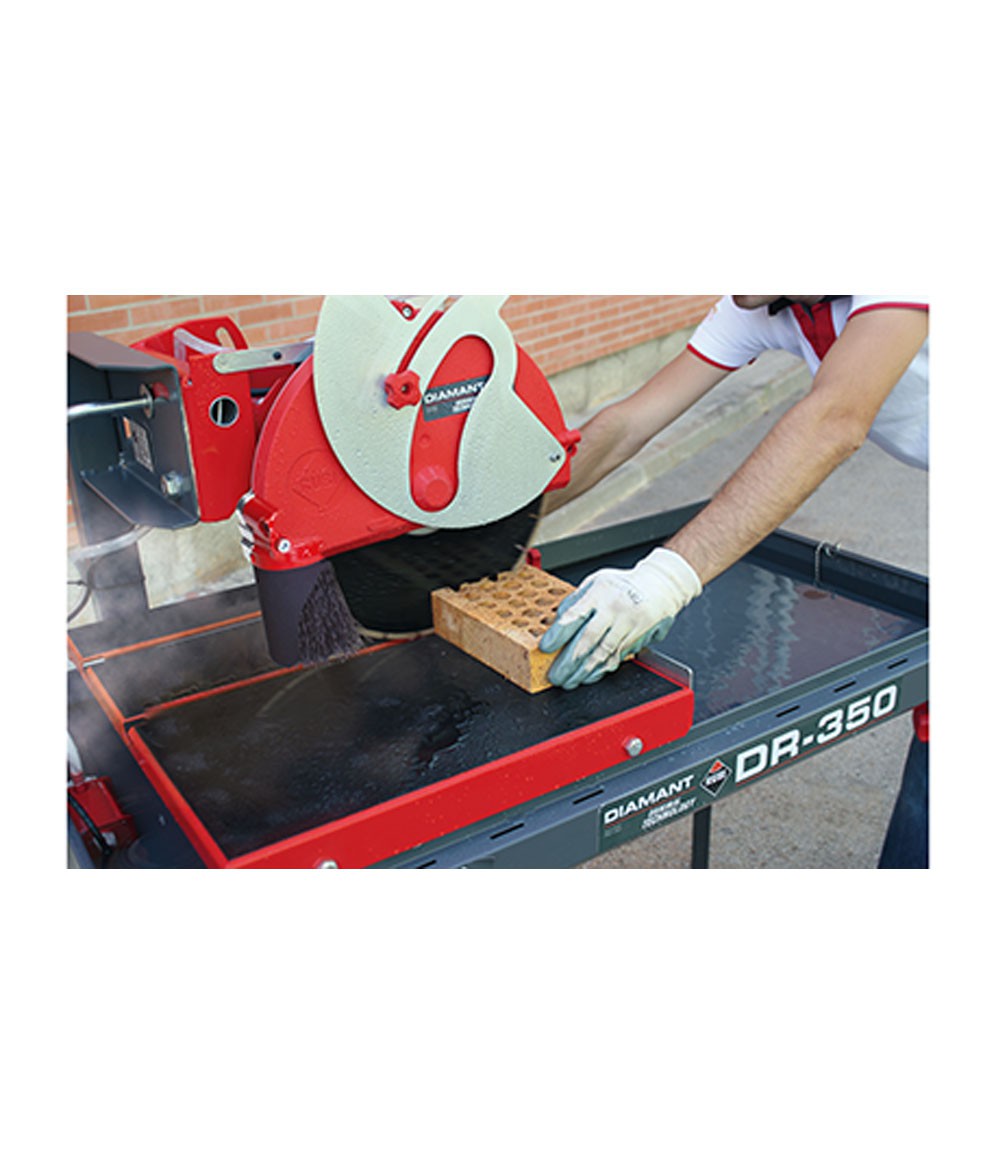

Rubi DR-350 230V 50Hz electric cutter. Electric cutter with chopping effect and mobile table ideal for cutting all types of construction materials such as: bricks, facing, refractory, marble, granite and, of course, ceramic tile.
The robustness and design of the steel chassis of the DR-350 electric cutter allow it to perfectly withstand the demands of intensive work on the job site.
CHARACTERISTICS
- Head with high-performance chopping effect. Great cutting capacity.
- Large table for a larger work surface and comfort.
- Very robust steel structure. Greater resistance to the demands of intensive work.
- Head equipped with a protector for greater safety when using segmented discs.
- Equipped with ZERO DUST system. Tested and certified by the TNO.
- Head equipped with a protector for greater safety when using segmented discs.
- With thermal protector. Except three-phase motors.
- Adjustable head at 45º.
- Large table (58.5 x49.5 cm.).
- Disc cooling by water pump with built-in regulator tap.
- Diamond blade Ø 300-350 mm. (Not included).
- Machine served without cable.
- Direct motor.
- It is supplied with the new ZERO DUST system mounted, in addition to a second set of standard anti-splash skirts.
MATERIALS
- For all types of construction materials such as: Bricks, Exposed Face, Refractory, Marble, Granite and ceramic tile.
SPECIFICATIONS
- Cutting length - 84 cm
- Diagonal cut length - 43.5x43.5 cm
- Maximum cutting thickness 1 or 2 passes - 95/150 mm
- Miter cut length - ∞ cm
- Power - 230V-50Hz.
- Revolutions per minute - 2800
-
Disc included - No
- Outer diameter - 300-350 mm
-
Cutting effect - Yes
- Length width height - 115x69x132.5 cm
