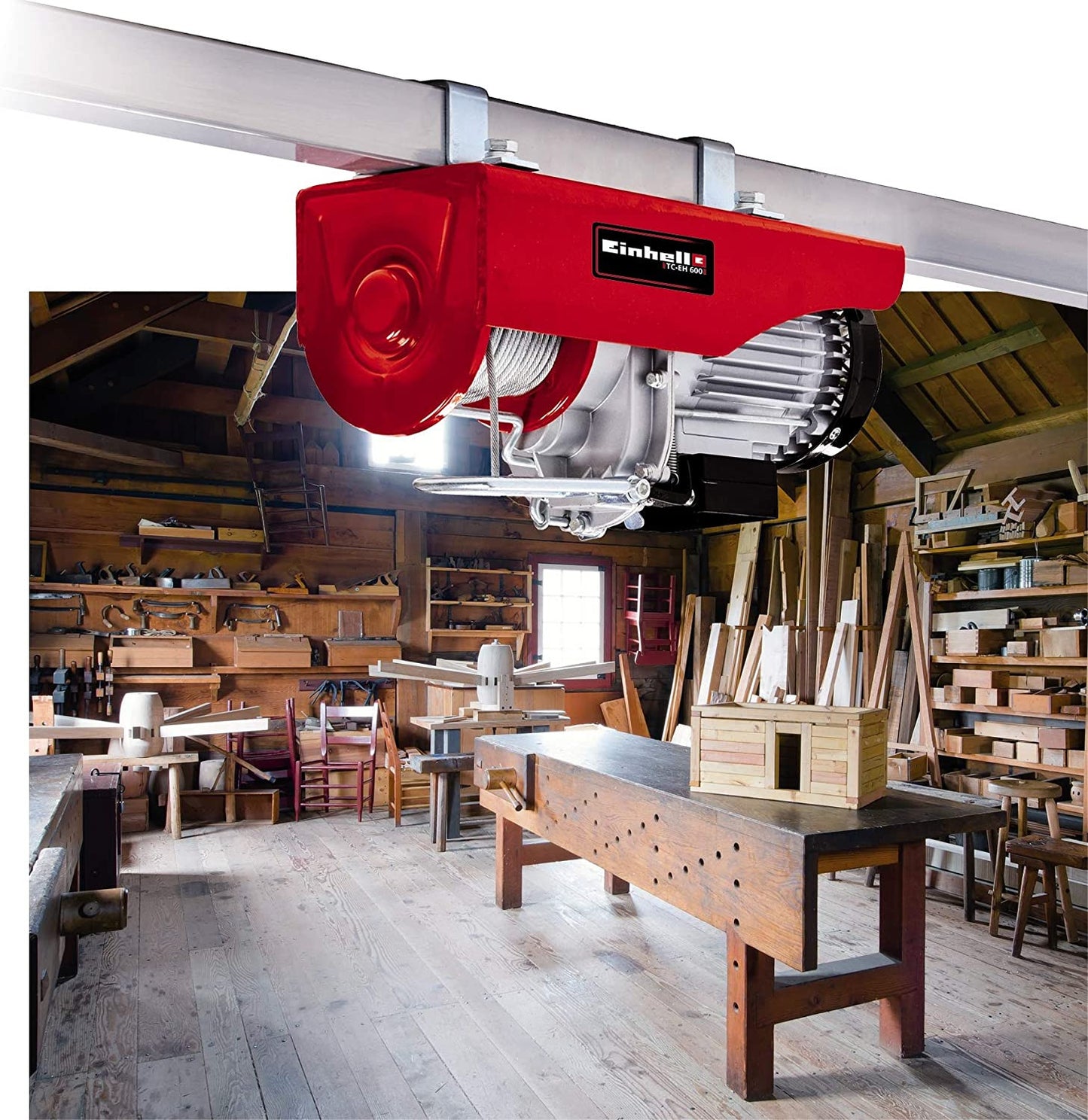

The Einhell TC-EH 500 cable hoist allows for comfortable and smooth lifting of heavy loads, whether in the house, garden or workshop. At the touch of a button, the cable hoist can lift loads of up to 600 kilograms with a power consumption of 1000 watts.
It is equipped with a 18.5 meter long twist-free wire cable. Wire ropes without swirls (Ø 4.5 mm). Without the deflection pulley, the maximum payload is halved to 300 kilograms and the lifting height is 18 meters. With the deflection pulley, 600 kilograms can be carried to a height of up to 9 meters.
The safety equipment of the electric wire rope hoist is extensive. Therefore, the operation switch has an emergency shutdown function. The motor is equipped with a thermal switch and is therefore protected against overheating.
The safety tie on the cargo hook helps prevent accidental dropping of cargo. In addition, an automatic brake secures the load in any position. The automatic end disconnection ensures that the wire rope hoist is safely disconnected upon reaching the end position.
For fixing, two double clamps are provided. The lifting speed with the deflection pulley is four meters per minute and without deflection pulley, eight meters per minute.
CHARACTERISTICS
- 18.5m cable
- Pulley with load hook
- Control switch with emergency stop
- Motor with thermal switch
- Cargo hook with safety bar
- An automatic brake secures the load in all positions
- Automatic limit switch
- Fixing with two double clamps
SPECIFICATIONS
- Mains supply: 240 V
- Max power Motor power (S2 | S3%): 1050 W
- Payload without return pulley: 300 kg
- Payload with return pulley: 600 kg
